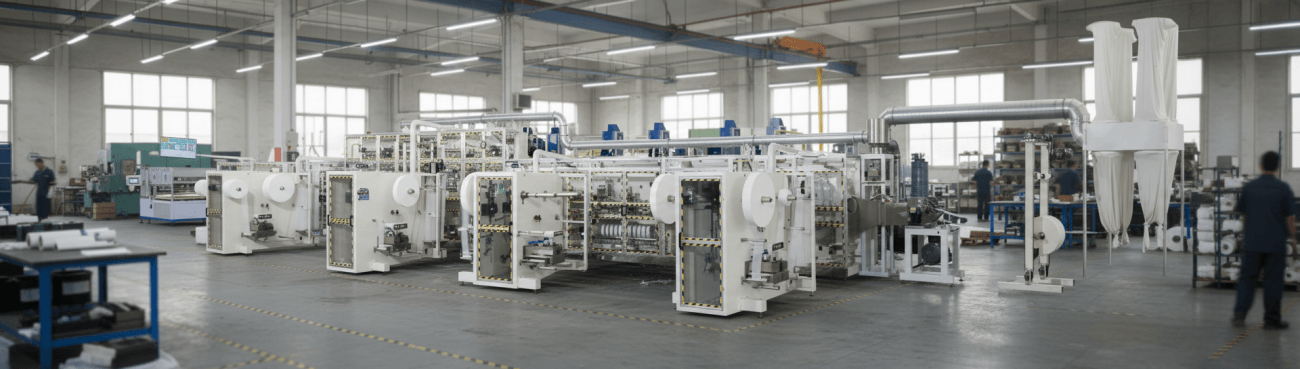

T Shape Baby Diaper Machine




Speed and Parameters

Production Speed	700 ppm
Stable Speed	500 ppm
Qualified Rate	≥ 97% (excluding wastage caused by glue applicators and material splicing joints)
Efficiency	≥ 85%
Installation Capacity	≥ 330 KW
Power Supply	380V, 50Hz, Three-phase, Four-wire (adjustable according to regional requirements)
Air Pressure	0.6 – 0.8 MPa
Total Weight	Approx. 75 Tons
Machine Size (L×W×H)	38 m × 8 m × 4.5 m

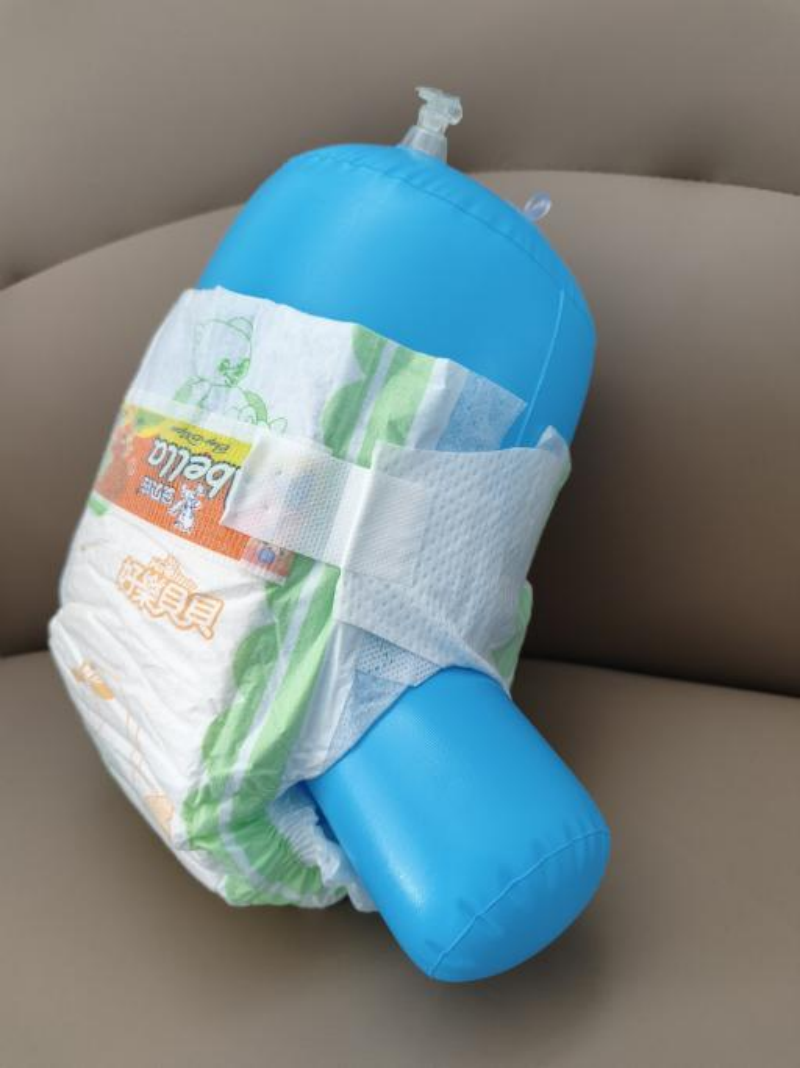

Finished Product Size	M / L / XL (according to order)
Machine Direction	Customized

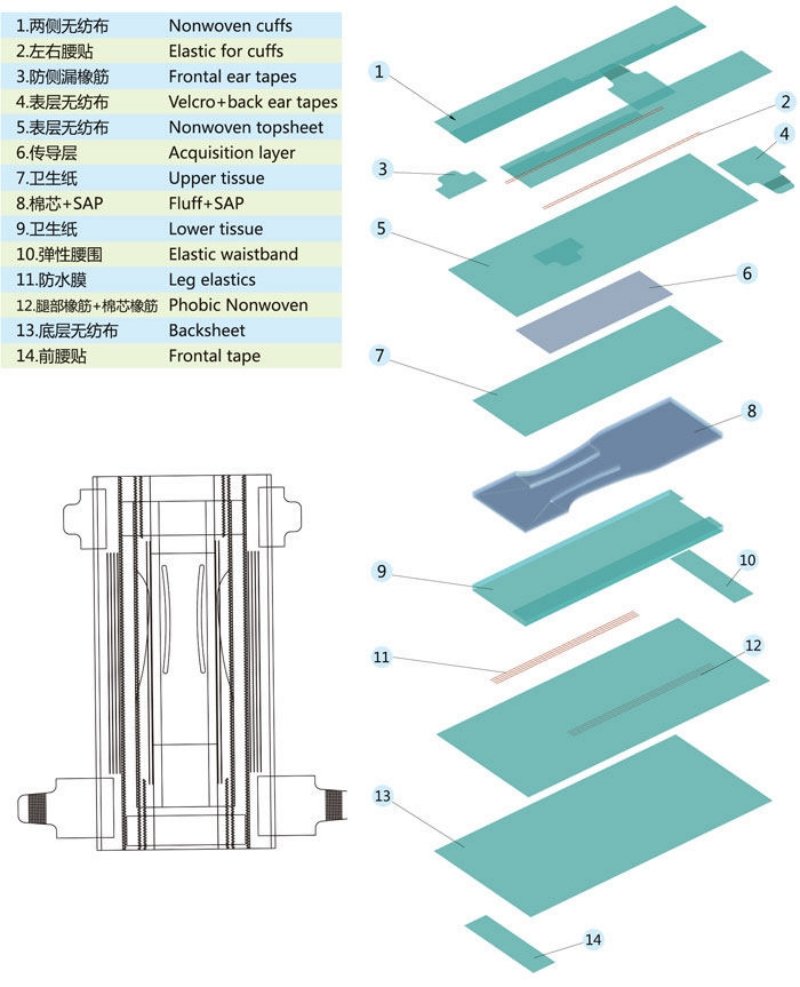

Raw Materials	Non-woven fabric, SAP, PE film, Fluff pulp, Hot melt glue

Professional Consultant

Name: Ezio Libertini

Introduction:
He joined an Italian inventor company in 1985. In 1990, he participated in the Kimberly-Clark factory project in China, and subsequently led Kimberly-Clark factory projects in South Korea, Vietnam, and Indonesia. Later, he joined the Italian company CCS and was responsible for project management.

Contact Us

Wechat / WhatsApp: +86 134 8671 3850

Email:admin@ezio-machinery.com

Glue Spray Solution

Customized glue spray solutions are available according to product and production requirements.

Package

Standard export package, suitable for long-distance transportation.
